Description

MECHANICAL PROPERTIES

• Cells 6 x 10 Cell vendor LG
• Cell type Multicrystalline Cell dimensions 156 x 156 mm2 / 6 x 6 in2
• # of busbar 3 Dimensions (L x W x H)1632 x 986 x 42 mm / 64.25 x 38.82 x 1.65 in
• Maximum load (Pa)113 psf (5400 Pa) Weight 19 kg / 41.89 lb
• Connector typeTyco connector IP 67 Junction box IP 65 with 3 bypass diodes
• Length of cables 2 x 1000 mm / 2 x 39 in*NEC 2008 compliant

ELECTRICAL PROPERTIES (STC*)

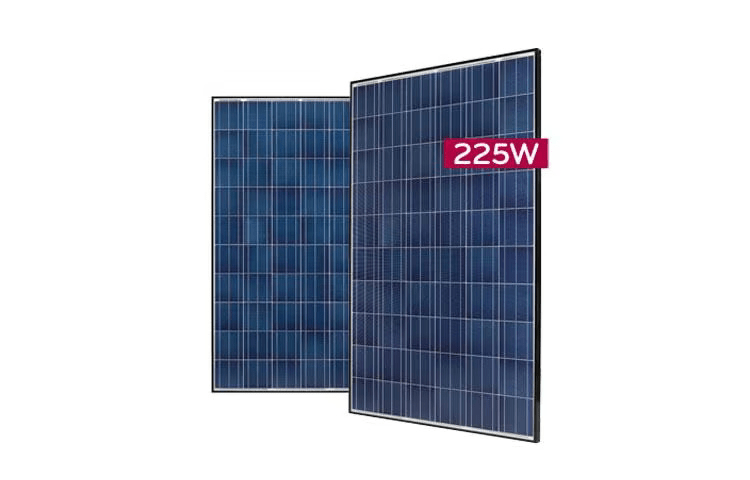

• Maximum power at STC (Pmpp) 225 MPP voltage (Vmpp) 29
• MPP current (Impp) 7.76 Open circuit voltage (Voc) 36.3
• Short circuit current (Isc) 8.3 Module efficiency (%) 14.0
• Operating temperature (°C) -40 ~ +90 Maximum system voltage (V)600
• Maximum series fuse rating (A) 20 Power tolerance (%) 0 ~ +3
• *STC (Standard Test Condition): Irradiance 1000 W/m2, module temperature 25 °C, AM 1.5 /
The nameplate power output is measured and determined by LG Electronics at its sole and
absolute discretion.

ELECTRICAL PROPERTIES (NOCT*)

• Maximum power (W) 164.4 Maximum power voltage (V) 26.14
• Maximum power current (A)6.29 Open circuit voltage (Voc) 33.41
• Short circuit current (Isc) 6.78 Efficiency reduction (from 1000 W/m2 to 200 W/m2)< 4.5 %
• *NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20
°C, wind speed 1 m/s
