Description

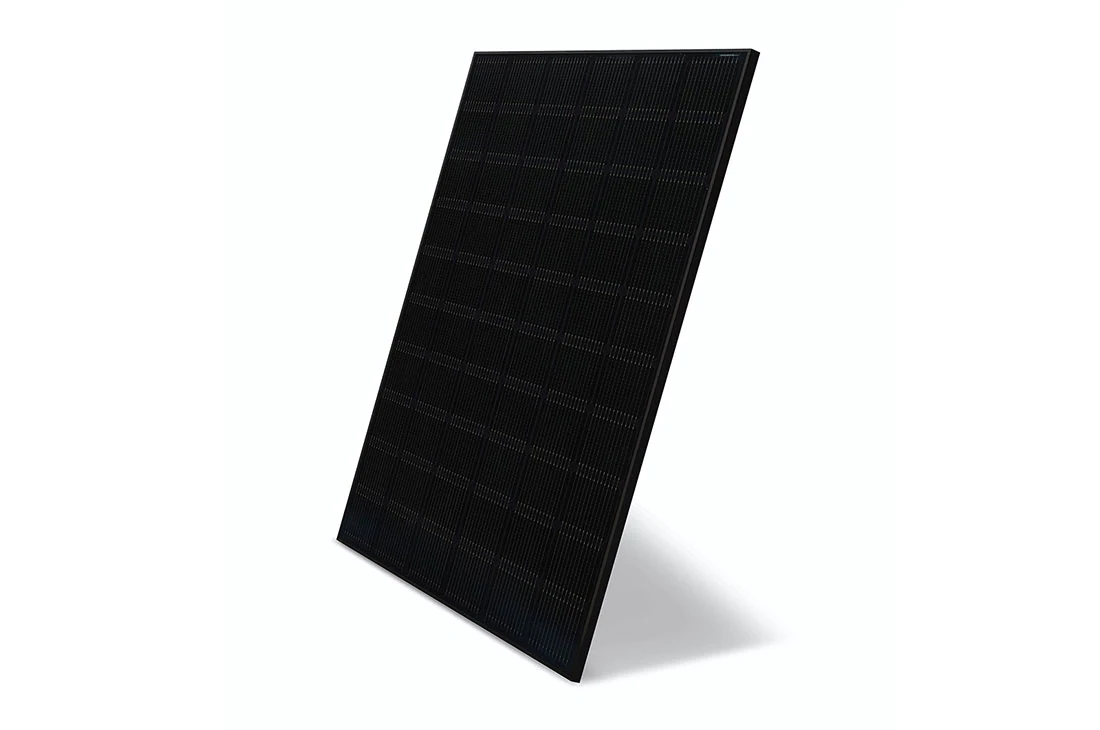

GENERAL DATA

• Cell Properties (Material/Type) Monocrystalline/N-type Cell Maker LG
• Cell Configuration 60 Cells (6 x 10) Number of Busbars 12EA
• Module Dimensions (L x W x H) 1,740mm x 1,042mm x 40mm Weight 18.6kg
• Glass (Material) Tempered Glass with AR Coating Backsheet (Color) Black
• Frame (Material) Anodized Aluminium Junction Box (Protection Degree) IP 68 with 3
Bypass Diodes
• Cables (Length)1,100mm x 2EA Connector (Type/Maker) MC 4/MC

ELECTRICAL PROPERTIES (NMOT)

• Model LG375N1K-A6 Maximum Power (Pmax) 281
• MPP Voltage (Vmpp) 33.7 MPP Current (Impp) 8.33
• Open Circuit Voltage (Voc) 39.5 Short Circuit Current (Isc) 8.84

ELECTRICAL PROPERTIES (STC*)

• Model LG375N1K-A6 Maximum Power (Pmax) 375
• MPP Voltage (Vmpp) 35.9 MPP Current (Impp) 10.45
• Open Circuit Voltage (Voc) 42.0 Short Circuit Current (Isc) 11.00
• Module Efficiency (%) 20.7 Operating Temperature (°C) -40 ~+85
• Maximum System Voltage (V) 1000 (IEC/UL) Maximum Series Fuse Rating (A) 20
• Power Tolerance (%) 0 ~ +3 * STC (Standard Test Condition): Irradiance 1000W/m²,
cell temperature 25°C, AM 1.5
