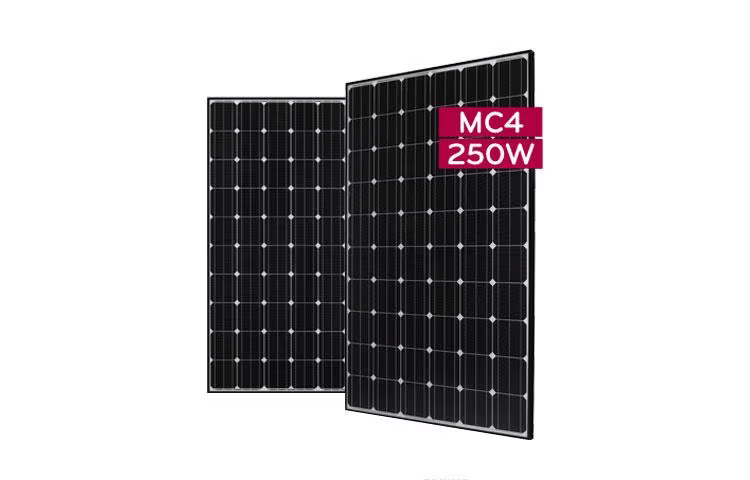

Description

MECHANICAL PROPERTIES

• Cells 6 x 10 Cell vendor LG
• Cell type Monocrystalline Cell dimensions 156 x 156 mm2 / 6 x 6 in2
• # of busbar 3 Dimensions (L x W x H)1632 x 986 x 42 mm / 64.25 x 38.82 x 1.65 in
• Maximum load (Pa) 5400 (113 psf) Weight 18.4 kg / 41.89 lb
• Connector type MC4 connector IP 67 Junction box IP 65 with 3 bypass diodes
• Length of cables 2 x 1000 mm / 2 x 39.37 in

ELECTRICAL PROPERTIES (STC*)

• Maximum power at STC (Pmpp) 250 MPP voltage (Vmpp) 29.9
• MPP current (Impp) 8.37 Open circuit voltage (Voc) 37.1
• Short circuit current (Isc) 8.76 Module efficiency (%)15.5
• Operating temperature (°C)-40 ~ +90 Maximum system voltage (V) 1000
• Power tolerance (%)0 ~ +3 *Power at STC (Standard Test Condition): Irradiance
1000 W/m2, module temperature 25 °C, AM 1.5/ The nameplate power output is
measured and determined by LG Electronics at its sole and absolute discretion.

ELECTRICAL PROPERTIES (NOCT*)

• Maximum power (W)183.52 Maximum power voltage (V) 27.16
• Maximum power current (A) 6.76 Open circuit voltage (Voc) 34.36
• Short circuit current (Isc) 7.07 Efficiency reduction (from 1000 W/m2 to 200 W/m2) <
4.5 %
• *Power at NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2,
ambient temperature 20 °C,wind speed 1 m/s
