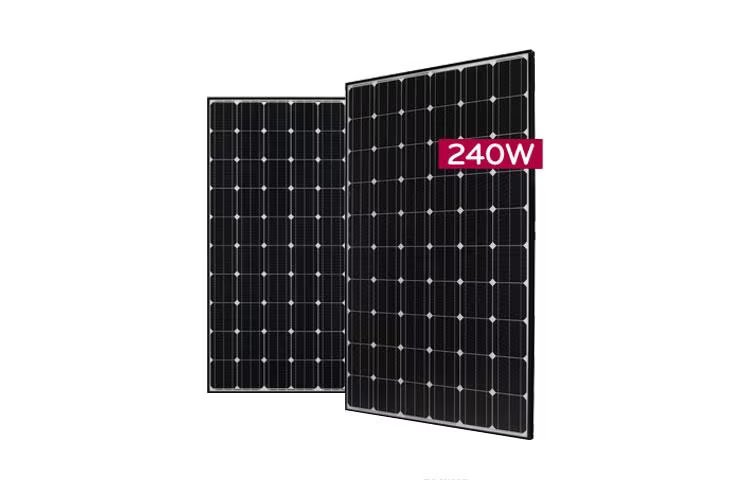

Description

MECHANICAL PROPERTIES

• Cells 6 x 10 Cell vendor LG
• Cell type Monocrystalline Cell dimensions156 x 156 mm2 / 6 x 6 in2
• # of busbar 3 Dimensions (L x W x H) 1632 x 986 x 42 mm / 64.25 38.82 x 1.65 in
• Maximum load (Pa)113 psf (5400 Pa)Weight 19 kg / 41.89 lb
• Connector type Tyco connector IP 67 Junction box IP 65 with 3 bypass diodes
• Length of cables 2 x 1000 mm / 2 x 39 in *NEC 2008 compliant

ELECTRICAL PROPERTIES (STC*)

• Maximum power at STC (Pmpp) 240 MPP voltage (Vmpp) 29.7
• MPP current (Impp) 8.1 Open circuit voltage (Voc) 36.9
• Short circuit current (Isc) 8.58 Module efficiency (%) 14.9
• Operating temperature (°C) -40 ~ +90 Maximum system voltage (V)600
• Maximum series fuse rating (A)20 Power tolerance (%)0 ~ +3
• *STC (Standard Test Condition): Irradiance 1000 W/m2, module temperature 25 °C,
AM 1.5 / The nameplate power output is measured and determined by LG Electronics
at its sole and absolute discretion.

ELECTRICAL PROPERTIES (NOCT*)

• Maximum power (W)175.6 Maximum power voltage (V) 26.77
• Maximum power current (A) 6.58 Open circuit voltage (Voc)34.12
• Short circuit current (Isc) 6.93 Efficiency reduction (from 1000 W/m2 to 200 W/m2)<
4.5 %
• *NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient
temperature 20 °C, wind speed 1 m/s
